When troubleshooting on-site failures, we often encounter a baffling “ghostly phenomenon”: the product crashes or triggers falsely as soon as the customer uses it, but the moment an R&D engineer touches the oscilloscope probe or multimeter leads to the circuit, the fault instantly disappears. Remove the probe, and the problem immediately reappears.
This isn’t magic; it’s a very typical “observer effect” in electronic circuits. Recently, while troubleshooting a fault with an external switch on a module product, we fell squarely into this trap.
1. The Failure Scene and Comparison
The customer’s module product failed to work correctly when connected to an external rocker switch. The software configuration at the time was set to edge-triggered mode.
To troubleshoot, we conducted two sets of comparative tests:
- Change the switch: We replaced the rocker switch with a standard push-button switch and changed the software to level-triggered mode. The product worked perfectly.
- Use test instruments: We kept the rocker switch and edge-triggered mode unchanged. When we used an oscilloscope or multimeter to probe the signal, the fault mysteriously disappeared during the testing period.
2. Why does the circuit work normally once the instrument is connected?
Many people overlook a key fact: oscilloscope probes and multimeter leads are not absolutely ideal measurement tools. They both possess a parasitic capacitance of tens of picofarads (pF) to ground, along with specific input impedance.
When an external switch pin has no hardware filtering, any slight mechanical bounce generates a series of high-frequency glitches. When you probe this pin, the parasitic capacitance of the probe unintentionally acts as a filtering capacitor, quietly absorbing these high-frequency glitches. This leads you to see a relatively clean waveform on the oscilloscope screen, mistakenly assuming the circuit itself is fine. However, once the probe is removed, the pin is once again exposed to high-frequency noise without that protection.
3. The Root Cause: Edge Triggering Has Zero Tolerance for “Hardware Bounce”
Mechanical switches produce high-frequency hardware bounce ranging from 1μs to 1ms due to the physical elastic contact of internal metal contacts during closure or opening.
- In level-triggered mode: Software typically includes a 10~20ms debounce delay logic (i.e., after detecting a change, the software waits a moment before confirming). This mechanism naturally avoids the initial glitch area, so performance is normal when using a level-triggered push-button.
- In edge-triggered mode: The MCU’s interrupt controller is extremely sensitive to voltage level transitions. The dozens of microsecond-level glitches generated by a single switch press are recognized by the MCU as dozens of consecutive interrupt inputs. This causes the system’s internal interrupt counter to overflow instantly, leading to logical chaos.
4. Real Oscilloscope Waveform Comparison
Below are two typical waveforms captured during our reproduction and resolution of the issue:

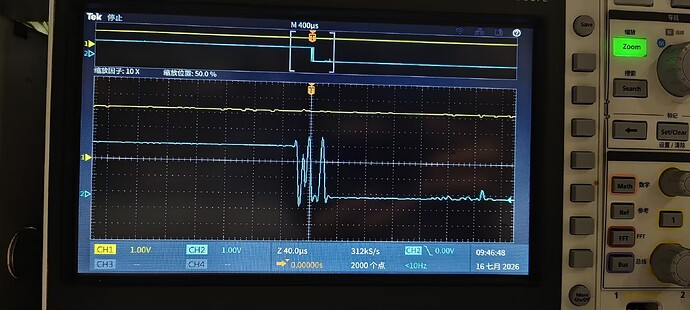

No Debounce Capacitor (The real state when the probe is removed)
In edge-triggered mode, the first 10ms after pressing the switch is filled with dense, high-frequency spike noise. Every transition triggers an interrupt, which is the culprit behind the system logic crash.

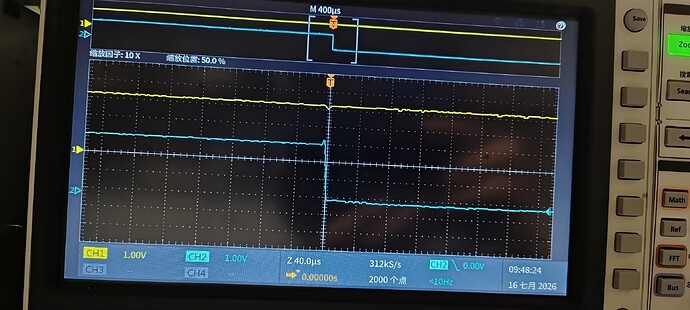

With External Debounce Capacitor (Smooth RC Charging Curve)
After adding a filtering capacitor, the high-frequency glitches are completely smoothed out, and the waveform becomes a very smooth exponential decay curve. The edge is clean, allowing the MCU to capture only a single valid edge.

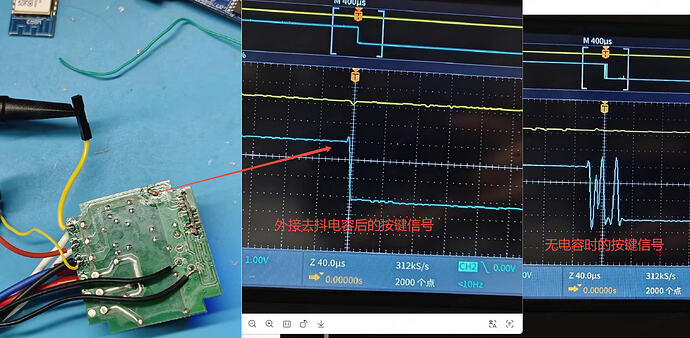

(Oscilloscope waveform showing the disappearance of glitches and smooth transition after parallel connection of a 0.1μF capacitor)
5. Summary: A Small Capacitor Solves a Big Problem
Now that we know the probe’s parasitic capacitance can “save the day,” the root solution is clear: permanently integrate this capacitor into the hardware design.
We placed a 0.1μF (100nF) surface-mount ceramic capacitor in parallel across the rocker switch terminals (i.e., from the MCU input pin to ground). This capacitor, in conjunction with the internal or external pull-up resistor, forms a low-pass RC filter. When the switch generates high-frequency mechanical bounce, the capacitor buffers the microsecond-level spike pulses through its charge/discharge effect, filtering out the noise and converting the chaotic glitches into a single, smooth level transition.
Engineer’s Lesson Learned:
During hardware design, whenever you encounter edge-triggered external inputs or interrupt pins, it is an iron rule to reserve a debounce capacitor to ground at the pin. Never let the parasitic capacitance of test instruments play the role of components in your formal circuit.
